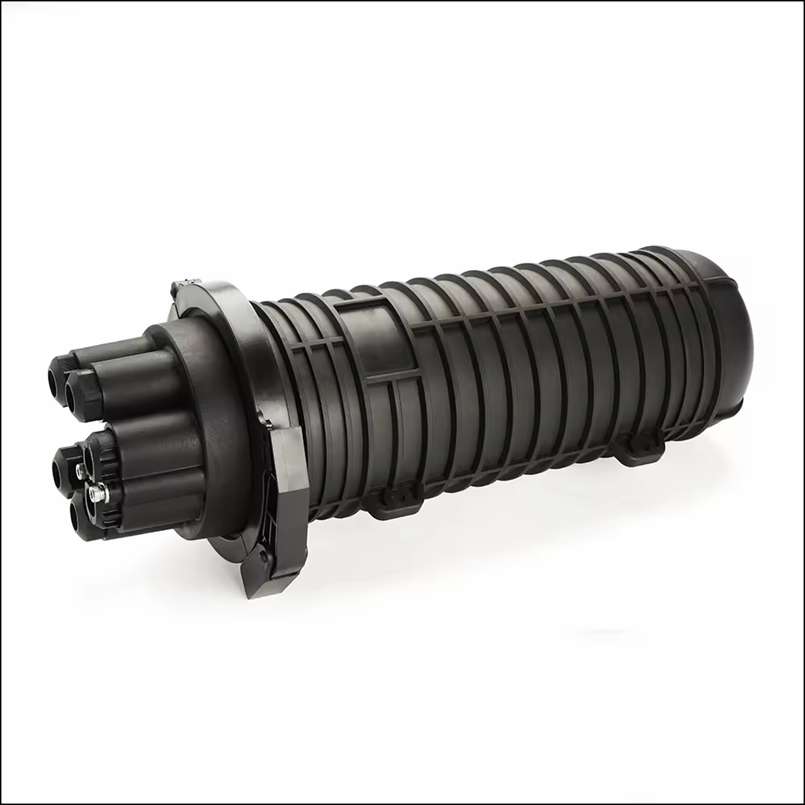

Fiber Optic Splice Closure Dome Type
–Robust, chemical resistant body, ribbed for additional mechanical strength
–Highly efficient fiber management system with splice tray for single and ribbon fiber cables
–The hinged splice tray allows easy access to fibers/splices without removing other trays.
–Integrated seal, air tight and water proof RoHS compliant
–Applicable for multiple cables by changing grommets
–Easy operation and good sealing performance.
–Protection grade: IP68
Description:
Fiber Optic Splice Closure is intended to meet the needs of anyone using fiber optic splice closures in the long haul, metro, local access (xDSL, HFC, wireless backhaul) and FTTx feeder/distribution networks. The unit requires no special tools, which helps reduce tooling costs and allows for ease of installation and re-entry into the closure. SK01-D5607 can be used in a wide range of use environments, such as underground or aerial, pole, wall etc.
| Construction | Description |
| Capacity | Single fiber：144Cores Ribbon fiber：432Cores |
| Material | PP+GF |
| Dimension (mm) | 525*Φ225 |
| Inlets/Outlets | 1/4 |
| Installation | Aerial, wall, pole, underground, pipeline etc. |
| Net Weight（g） | 4300 |
| Protection Level | IP68 |
| Diameter Of Fiber Cable | Oval port：Φ8-Φ18 mm Branch port：Φ8-Φ18 mm |
| Sealing Mode | Mechanical Seal |
| Splice Tray Capacity | Single fiber：32F Ribbon fiber：6F |
| Max No. Tray Installed | 4pc |
