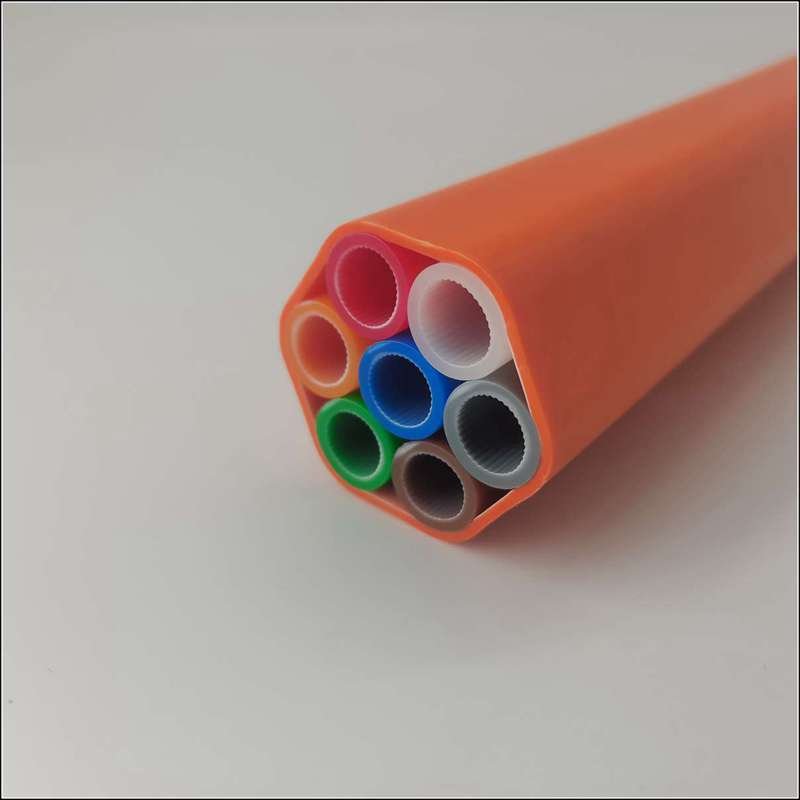

7 Ways-14/10mm HDPE Microduct Bundle
–Micro duct & Sheath are made from 100% virgin HDPE
–OD of Inner tube: 14.0mm ± 0.1mm
–ID of Inner tuber: 10.0mm ± 0.1mm
–Wall thickness of Inner tube: 2.0mm ± 0.10mm
–Pressurization：5 minutes @25 bar each duct
–Tensile strength:≥1350N (100mm/min)
–Min. bend radius: 168mm
Microduct Multi pipe is a bundle of pipes that is made up to several Microduct Single pipes. They are suitable for direct buried installation and for inserting or pushing into cable shafts, into HDPE Ducts or other pipes systems. Microduct Multi pipes can be used in construction sites such as open cut, Micro Trenching, Mini trenching and HDD.
Features:
Outer Diameter 5 to 22 mm, Versions DI and DB
Supplied as single tubes or bundle configurations
Made from High Density Polyethylene (HDPE)
Silicone inner lining to reduce friction on cable blowing
Excellent stress crack and stress crush resistance
