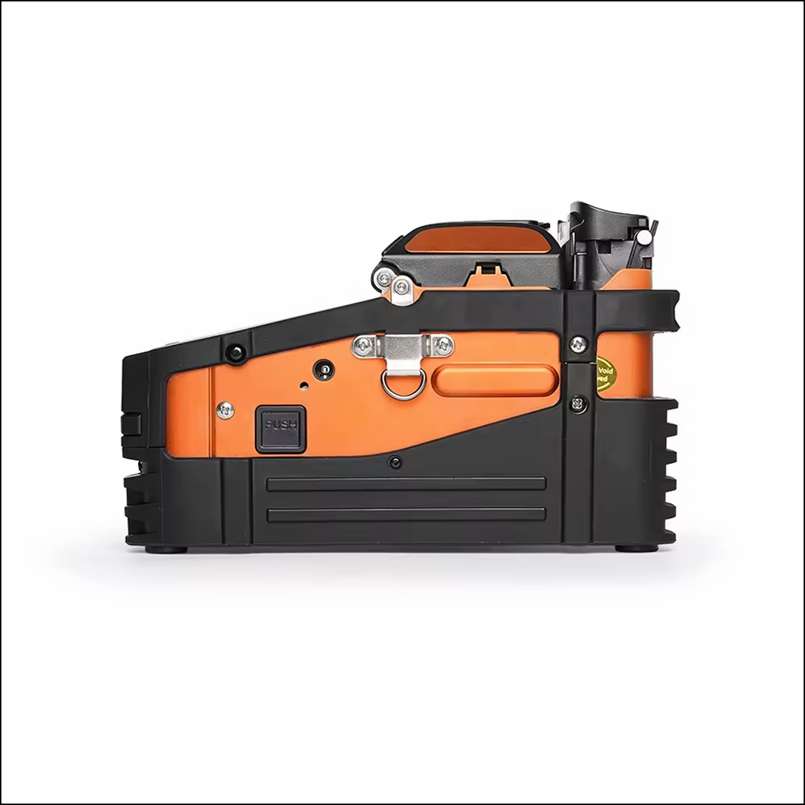

Optical Fiber Fusion Splicer
–Focus Mode: Six motors Auto focus
–Splicing Time: 5S
–Heating Time: 15S
–Applicable Fibers: SM(G.652&G.657), MM(G.651)DS(G.657), NZDS(G.655)
–Splice Loss: 0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
–Language: 10 languages(Chinese, English, French, Russian, Italian, Portuguese,Polish, Spanish, Thai, Arabic)
–Product Protection: Waterproof, dust proof, shock-resistant
–Battery: 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times
–Screen: 5 inch TFT color display
Description:

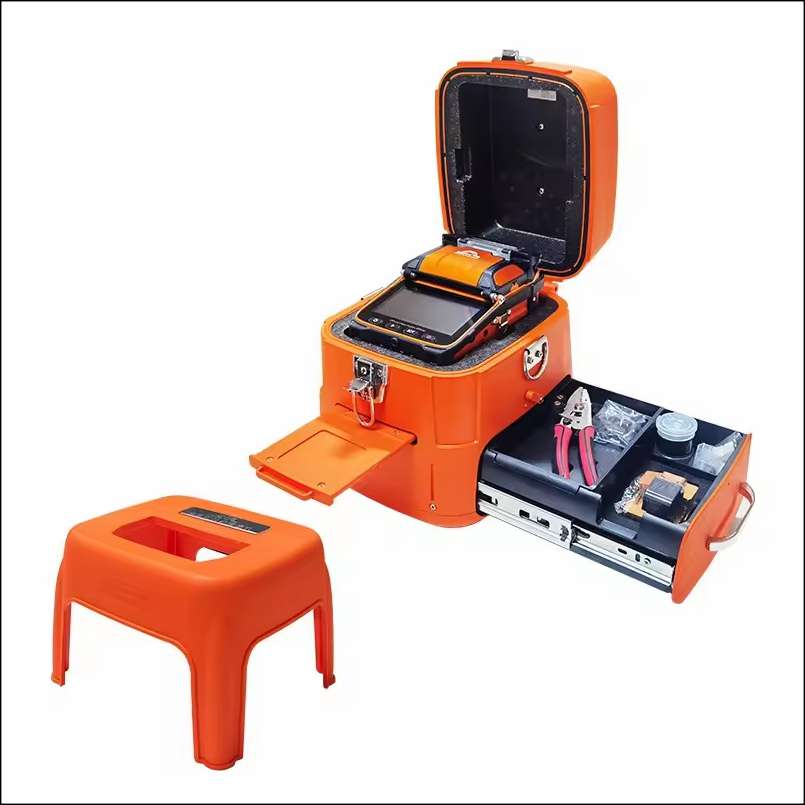

AI-9 Optical Fiber Fusion Splicer use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber splicing machine. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high- resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. -Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable
Features:
–AI-9 is a fully automatic, mainline fiber optical fusion splicer with six motors and fiber core alignment, capable of welding long-distance fiber optic lines.
–Also within VFL and OPM functions. Adopting industrial grade CPU, with fast running speed, 5-second rapid fusion welding,15-second rapid heating, 5-inch high-resolution LCD screen, 300x magnification;
–The work efficiency is increased by 50% compared to ordinary welding machines; Large-capacity lithium battery can be heated by fusion about 260 cores, out standing performance in harsh environments such as high altitudes, deserts, and extreme cold.
| Construction | Description |
| Fiber Alignment | Core/cladding alignment / Manual alignment |
| Splicing Time | 5s |
| Heating Time | 15s |
| Heating Mode | Automatic heating（Preheating） |
| Focus Mode | Six motors Auto focus |
| Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、 NZDS（G.655） |
| Splice Loss | 0.025dB（SM）、0.01dB（MM）、0.04dB（DS/NZDS） |
| Control Technology | Real-time control and calibration of fusion ARC |
| Return Loss | Better than 60DB |
| Fiber Diameter | Cladding Diameter：80-150μm |
| Coating Diameter：100-1000μm | |
| Fiber Cleave Length | Coating less than 250µm：8-16mm |
| Coating less than 250-1000µm:16mm | |
| Software Updates Length | Automatically update、 Update by a key |
| Boot Time | 1 second |
| Language Setting | 10 languages to switch freely(Chinese, English, French, Russian, Italian, Portuguese, |
| Polish, Spanish, Thai, Arabic) | |
| Tension Test | Standard 2N |
| Fiber Holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Screen | 5 inch TFT color display |
| Splicing Mode | Normal / high precision splicing |
| Splicing Method | Fully automatic、Step by step splicing |
| Splicing Record Storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times |
| Power Supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
| Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
| Shrinkable Tube | 60mm、50mm、40mm、25mm |
| Product Protection | Waterproof, dust proof, shock-resistant |
